Datasheet

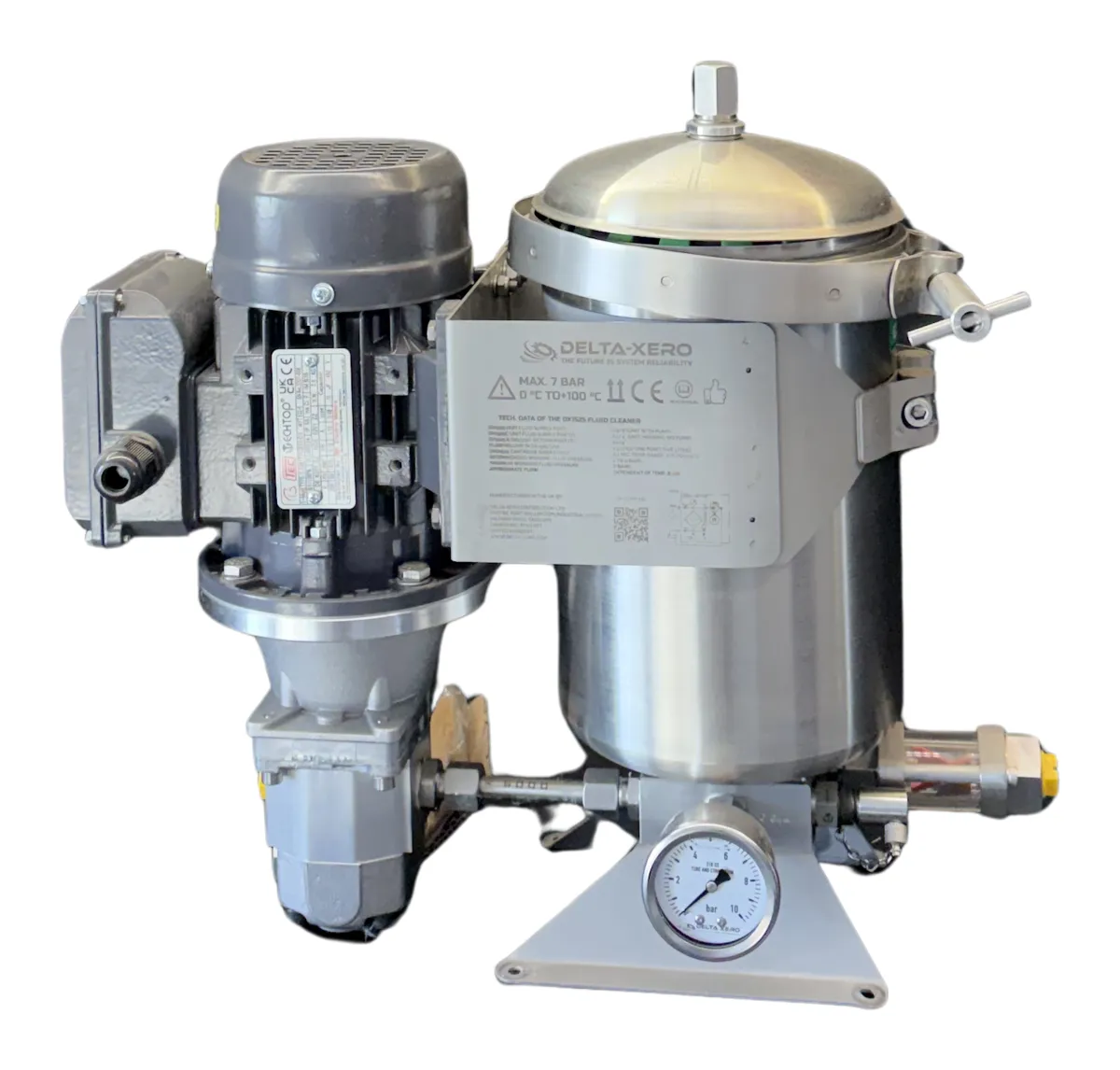

DX1525: datasheet
The DX1525 holds 1 cartridge and is sized for systems of up to 1,200 litres of oil at ISO VG 32. All figures below are the manufacturer's.
Key figures
- Cartridges
- 1 × DXO-1525
- System volume at ISO VG 32
- 1,200 L
- Flow at 32 cSt
- 1.25 l/min
- Particle filtration
- down to 0.1 µm
- Material
- SS304, SS316, aluminium
- Drive
- Electric
- Mounting
- Floor or wall
Versions and dimensions
| Version | Type | H × D × L (mm) | Weight (kg) | Connection in / out (BSP) |
|---|---|---|---|---|
| DX1525 | Compact, floor or wall | 386 × 230 × 435 | 13 | 3/8" / 3/8" |
Flow and system volume by viscosity
The thicker the oil, the lower the flow and the smaller the system the unit can keep clean. You will find your oil's viscosity at 40 °C on the oil's datasheet.
| Viscosity (cSt) | Flow (l/min) | Recommended system volume (L) |
|---|---|---|
| 32 | 1.25 | 1,200 |
| 46 | 1 | 940 |
| 68 | 0.8 | 800 |
| 100 | 0.6 | 640 |
| 220 | 0.4 | 480 |
| 320 | 0.2 | 240 |
Diesel and fuel (PT version)
The PT version has the same housing and dimensions as the tray version, but runs with DXPT cartridges for diesel and kerosene and is sized by flow.
| Model | Flow (l/min) | Weight (kg) | Connection in / out (BSP) | Cartridges |
|---|---|---|---|---|
| DX1525-PT | from 2.4 | 13 | 3/8" / 3/8" | 1 × DXPT |
The cartridge
The DX1525 uses the compact DXO-1525 cartridge. It filters down to 0.1 µm and holds up to 2,000 ml of water.
