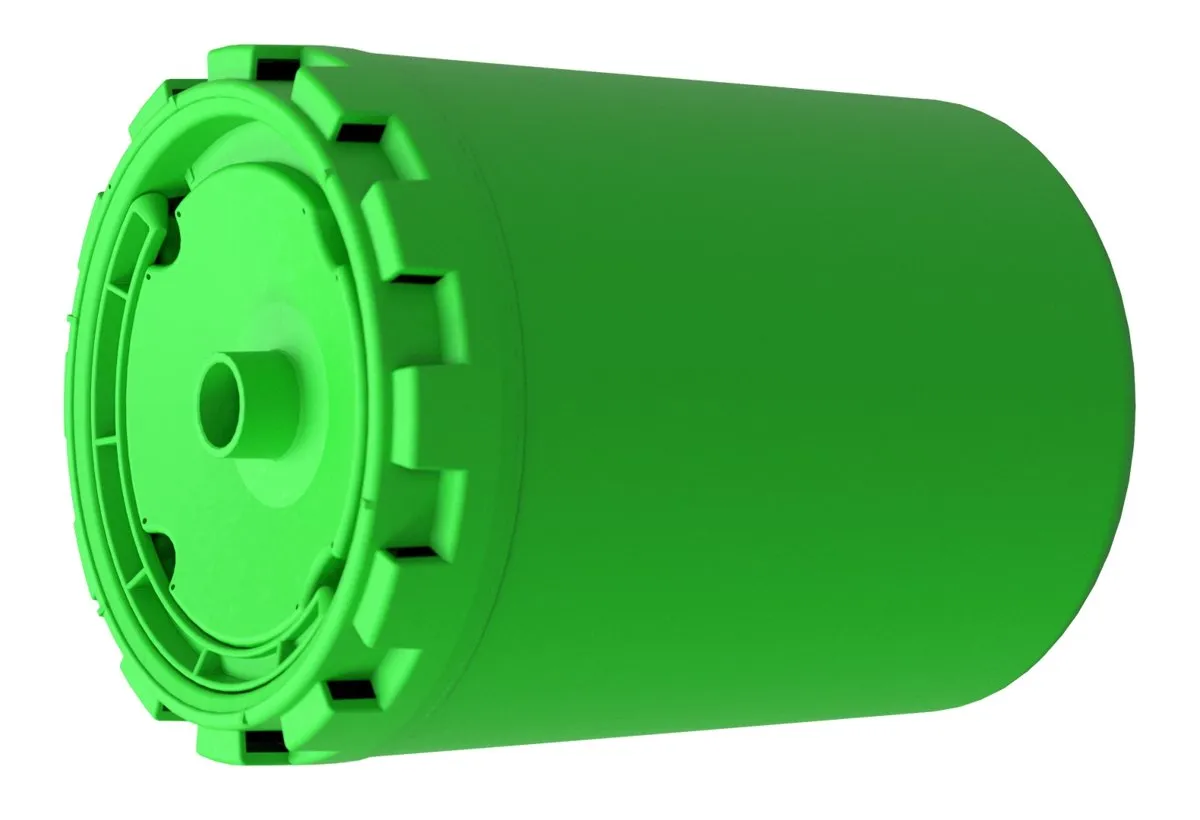

DXO
- Part no.
- DX10A0001V
- Used for

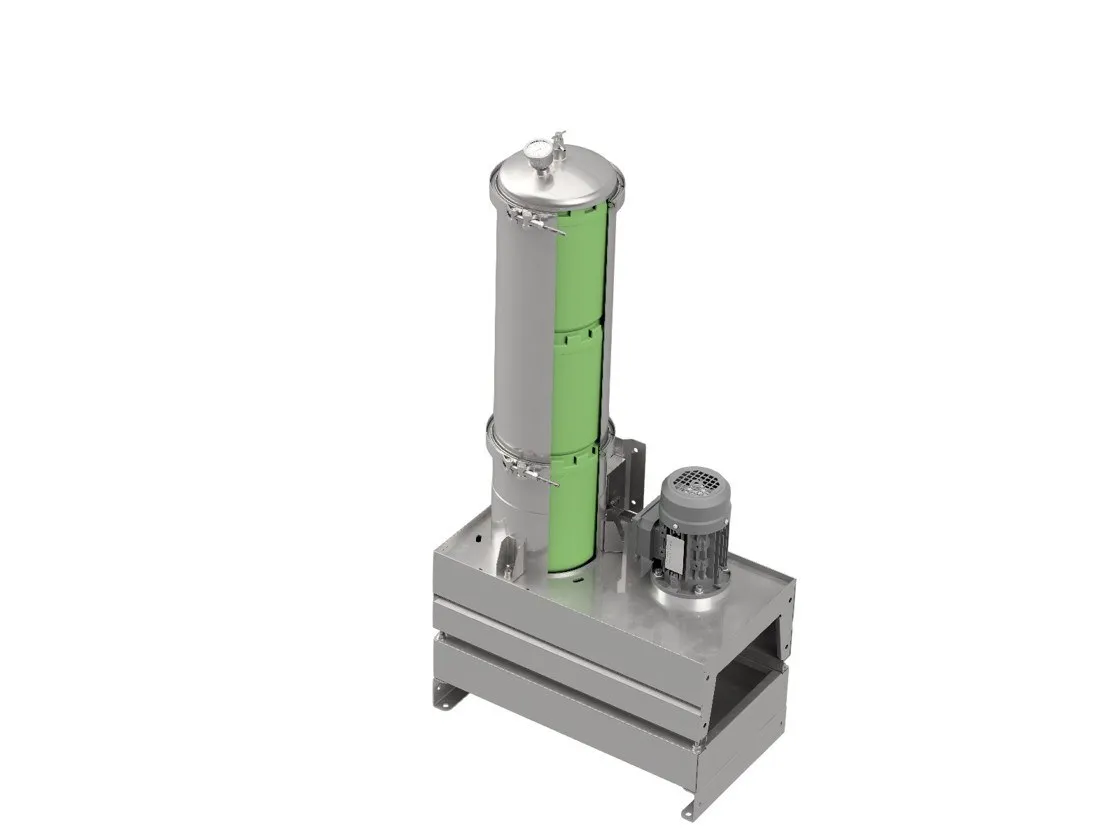

- Hydraulic, gear and lubricating oil (DX1001–DX1012)
- Weight, dry
- 1.85 kg
- Weight, saturated
- up to 4.5 kg
- Flow per cartridge
- 1 l/min at 32 cSt
- Water absorption
- up to 2,600 ml
- Package (mm)
- 192 × 192 × 265
Datasheet
Cartridges: datasheet
The cartridge is the Delta Xero unit's only wearing part. It removes particles down to 0.1 µm and binds water and oxidation products. There are three types.
Common to all three
- Particle filtration down to 0.1 µm
- Removes free and bound water
- Media: PP/cellulose mix, 100% recycled
- Operating temperature: 0–100 °C

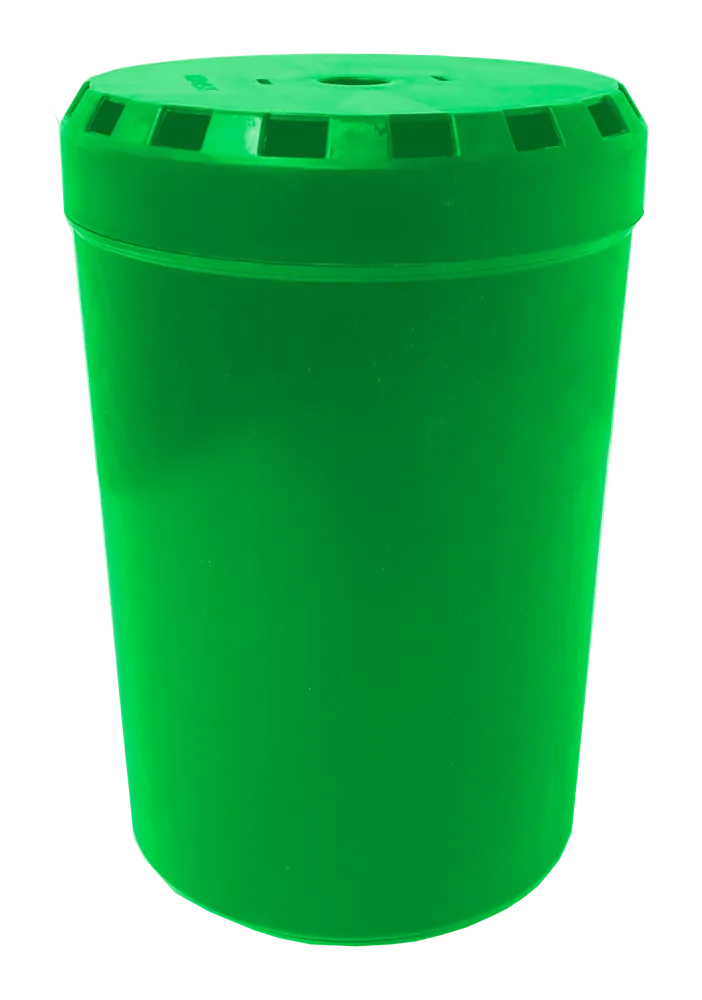

DXO-1525
- Part no.
- DX0-1525
- Used for
- Hydraulic, gear and lubricating oil (DX1525)
- Weight, dry
- 1.15 kg
- Weight, saturated
- up to 3.2 kg
- Flow per cartridge
- See the unit's datasheet
- Water absorption
- up to 2,000 ml
- Package (mm)
- 152 × 152 × 230
DXPT
- Part no.
- DXPT
- Used for
- Diesel and kerosene (PT versions)
- Weight, dry
- 1.65 kg
- Weight, saturated
- up to 4 kg
- Flow per cartridge
- up to 7 l/min (depends on viscosity)
- Water absorption
- up to 2,600 ml
- Package (mm)
- 192 × 192 × 265
When should the cartridge be changed?
The cartridge is changed when it is saturated: the flow indicator on the unit shows it, and the weight rises from dry to saturated weight. How quickly that happens depends on how much water and dirt there is in the system. That is what the samples in a pilot trial show.
