DX1001: datasheet

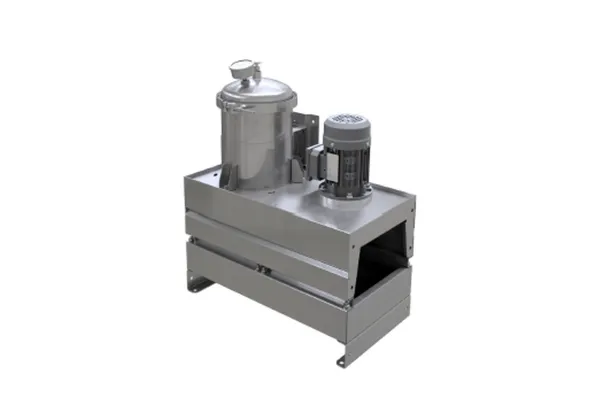

The DX1001 holds 1 cartridge and is sized for systems of up to 4,500 litres of oil at ISO VG 32. All figures below are the manufacturer's.
Key figures
- Cartridges
- 1 × DXO
- System volume at ISO VG 32
- 4,500 L
- Flow at 32 cSt
- 1.25 l/min
- Particle filtration
- down to 0.1 µm
- Material
- SS316
- Drive
- Electric or pneumatic
- Voltage (electric)
- 220 V / 415 V
Versions and dimensions
| Version | Type | H × D × L (mm) | Weight (kg) | Connection in / out (BSP) |
|---|---|---|---|---|
| DX1001-T | Tray | 674 × 300 × 550 | 20 | 1/2" / 3/8" |
| DX1001-W | Wall-mounted | 524 × 261 × 442 | 15 | 3/8" / 3/8" |
Flow and system volume by viscosity
The thicker the oil, the lower the flow and the smaller the system the unit can keep clean. You will find your oil's viscosity at 40 °C on the oil's datasheet.
| Viscosity (cSt) | Flow (l/min) | Recommended system volume (L) |
|---|---|---|
| 32 | 1.25 | 4,500 |
| 46 | 1 | 3,500 |
| 68 | 0.8 | 3,000 |
| 100 | 0.6 | 2,400 |
| 220 | 0.4 | 1,800 |
| 320 | 0.2 | 800 |
| 460 | 0.1 | 400 |
Diesel and fuel (PT version)
The PT version has the same housing and dimensions as the tray version, but runs with DXPT cartridges for diesel and kerosene and is sized by flow.
| Model | Flow (l/min) | Weight (kg) | Connection in / out (BSP) | Cartridges |
|---|---|---|---|---|
| DX1001-T-PT | 3.8 | 20 | 1/2" / 1/2" | 1 × DXPT |
The cartridge
The unit uses DXO cartridges. Each cartridge filters down to 0.1 µm and holds up to 2,600 ml of water. The cartridge is the unit's only wearing part.
